Lifting and Positioning

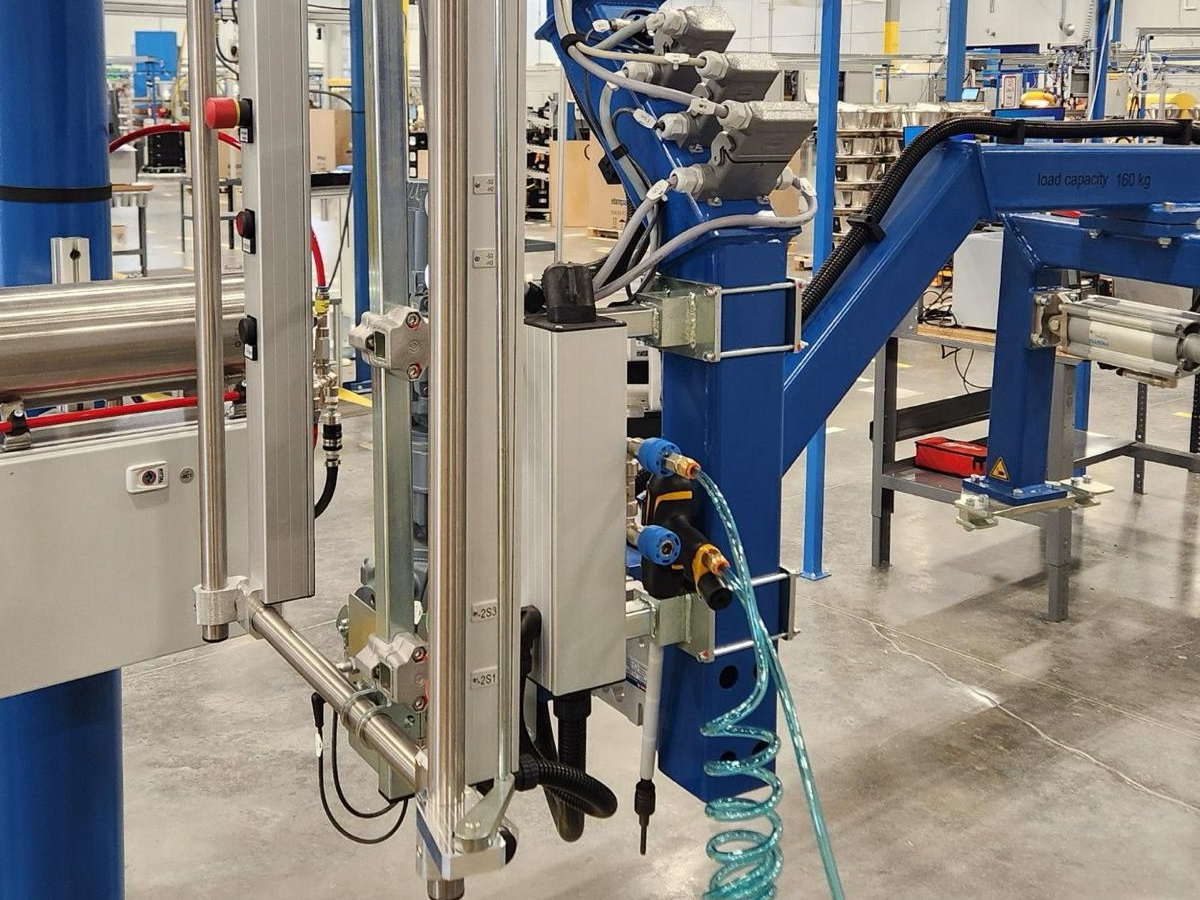

Lifting Axes
Vertical lifting axes engineered for precise, repeatable positioning in demanding handling stations.
At a Glance
- Load capacity
- Sized to your load
- Configuration
- Vertical lifting axis (column-mounted or in a rail system), pneumatic or PLC controlled
- Motion
- Guided vertical travel
- Positioning
- Precise, repeatable
- Best for
- Exact placement, rigid motion
Exact capacity, travel, and cycle are confirmed during application review.
When It Fits
Is This the Right Family?
Choose a lifting axis when the part has to arrive in the same place every cycle. Travel is guided rather than free, which takes a source of variation out of the process downstream.
Typical applications
- Repeatable placement into fixtures and nests
- Battery and module handling
- Stations where position tolerance matters
Not sure which family fits? The comparison in our selection guide walks through the decision by motion type, and our engineers will confirm it against your actual part.
